Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: BL
  • Model Number: BL-E911
  • Item name: Support RFID Card to door access gsm security alarm system
  • Frequency: Sim Card:GSM850/900/1800/1900MHZ
  • Working frequency: Host&Sensors315M/433M optional
  • Support: SMS,Voice Call,Record etc
  • Temperature and humidity: show on the display
  • Support language: English, Russian, Spanish, German, French and Chinese
  • Function: record /voice/talkback
  • Garding zones: 1 wired and 88 wireless guarding zones
  • linkage control function: support
  • Network: GSM+PSTN

Packaging & Delivery

Packaging Details 1 set in a box and fullfill with foam
Delivery Time 1-5 business day after receiving the full of payment



Product Description





Newest Support RFID Card to door access gsm security alarm system GSM+PSTN home anti-theft alarm system





The system can be armed based on owner’s setting ,when the detector find the intrusion signal and send alarm signal to the host,

after it be processed by the host, it will send an alarm short message address and categories to those mobile phones which have

relationship with the host, and automatically dial these phone numbers for the voice alarm and can talk, monitor. Besides user

canarm/disarm to the system by remote sending SMS, specific functions are as following

 Main feature:

1.TFT screen keypad, fashion and high-end(LCD Screen optional)

2.GSM/PSTN Dual-Network Alarm,safer and more stable

3.Support wireless 2262/1527 accessories,at most support 88remote controllers and 88 wireless zones and 1wired zone

4.Support RFID Card to door access and connect valve control manipulator( linkage control)could connect 8 groups of wireless intelligent home appliances.

5.Host can be used as an ordinary mobile phone, dial and pick up directly on the host

6.Support IOS and Android App to remote control

7.Support 6 languages (Chinese, English, Russian, Spanish, Germany and French)

8.Support wireless doorbell button, host, "ding dong, welcome” sound and 8 types defensive zone

9.Support stress password, it can auto send alarm notice in secret when an emergency

10.Built-in 105 db loud siren, External wired or wireless siren

11.Could check 100 latest alarming record

12.SMS 5 phones automatically while alarming and driving alarm.

13.Call 5 phones automatically while alarming and driving alarm, can hear the emergency alarm voice clearly.

14.Auto-dial 1 preset phone numbers of Alarm Center

15.Built-in high capacity rechargeable lithium battery, when power adapter outage, it’ll send messages to inform the user

16.With wired MIC interface, switching the silence and siren.

17.Remote Arm/Disarm, listen speak, siren on/off, intelligent switch socket function

18.3 group of timing arm/disarm

19.Multi Arm/Disarm ways

20.Record function:10s record, also embedded artificial voice, user can know the sence location and protection zones when alarm.

21.GSM frequency:850/900/1800/1900MHZ

22.With ROHS/CE/FCC certifications, conform to 3C Safety Standard and GB12663-2001 government standard





Support RFID Card to door access,and connect valve control manipulator( linkage control),

could connect 8 groups of wireless intelligent home appliances.

Technical parameters

 Technical parameters:

 GSM frequency:850/900/1800/1900MHZ for global use

 Working frequency between detector and alarm host(315M/433M optional) Wireless distance:100-200m(without obstacles)

Alarm response time<8S(GSM in normality)

 88 Wireless guarding zones;

Working conditions Operating temperature: -45~+60℃

Humidity: <95%

standby current:5mA

alarm current: <500mA

standby power:< 0.3W

Alarm power:< 1-2W

Power adapter: :AC100- 240V  50Hz/60Hz.

DC output: DC12V/2A

DC output: DC12V/ 2A

backup battery:DC7.5V/1200mA

Standby battery working hours≥48hours

Dimension: 188mm(Long)x120mm(Wide)x28mm(High)

   Gross weight:  1.5Kg

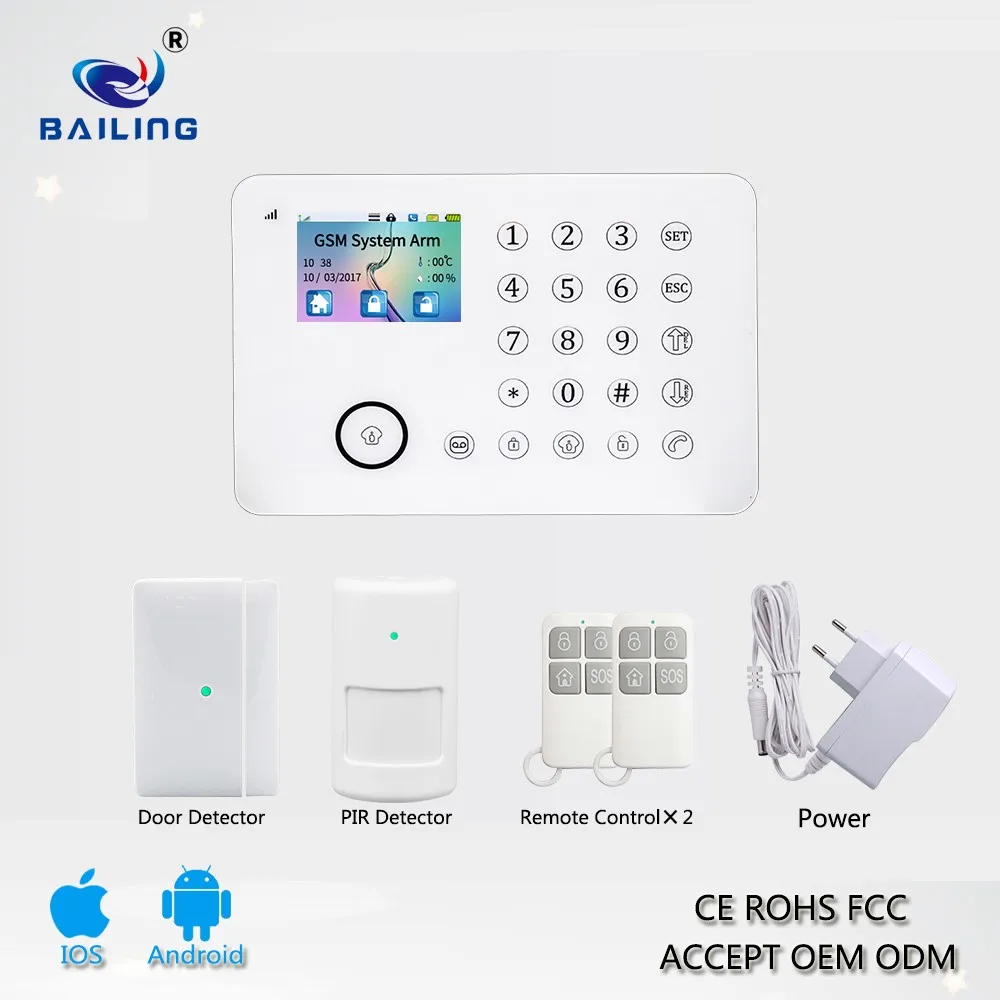

Standard Configurations:

1 X BL—E911 GSM control panel

1 X Wireless PIR motion detectors

1 X Wireless door/window magnetic sensor

2 X Wireless Remote controllers

1 X Power adapter

1 X English user manual

1 X Brand new & neutral package box

 Wireless door magnetic sensor

Power supply: DC12V (built in 12V dry battery)
Static current: < 20u A
Emission current: < 20mA
Emission frequency: 315/433MHz + 0.5MHz
Launch distance: 80 meters(without obstacles)
Clutch distance: 15 mm
Working environment:

Operating temperature :-10 -+55 ℃

Humidity <90%



Wireless infrared detector
Power supply: DC9V (built in 9V dry battery)
Static current: <100u A
Emission current:< 20mA
Emission frequency: 315/433MHz + 0.5MHz
Launch distance: 80 meters(without obstacles)
Detectable speed: 0.3-3 M/ sec

Detection angle: horizontal110 degrees , vertical 60 degrees
Working environment: operating temperature -10-+55℃

humidity <90%


Remote controller
Power supply: DC12V (built in 12V dry battery)
Static current: 0

Emission current: <15mA
Emission frequency: 315/433MHz + 0.5MHz
Launch distance:80 meters(without obstacles)
Working environment: operating temperature -10-+55℃

humidity <90%





DO-IT-YOURSELF SECURITY SYSTEM



911 is a do-it-yourself alarm system, we design this system to meet the demands for DIY users.The system comes with wall-mounted bracket,

you can mount this system on your front door or bedroom.Every configuration can be done through smartphone App. Once the system connects

to Internet or GSM,user can access it through smartphone. You can add/delete sensors, set receiving alarm phone numbers,siren yelling time,

entry/exit delay, Bypass zone...etc. The alarm system can send message to users, no need to monitoring service subscription, no contract and no

monthly monitoring fee. Lastly, it's compatible with CID (Contact ID) protocol, this allows user to use third-party's monitoring service.







HOME/BUSINESS ALARM SYSTEM



Protect your home/business is the primary task for BL-E911 security system. Through working with different wireless security sensors,

the alarm system can protect your home from potential burglary, fire, gas leak, flood and more. Unifore is devoting much time and

energy to develop this High-End alarm system, once alarm is triggered, user can receive alerts through smartphone, SMS, auto-dial

phone call. This system can program up to five personal phone numbers and one central monitoring station phone number to receive

alerts. It's suitable for both do-it-yourself users and professional installers.

Applications:

make it widely applied in shops, offices, and villa, residential area, garage, warehouse for cable telephone network to protection can't get to the place. Them can protect the safety of user and take care of property.

Warm tips:

BL-E911 compatible with all the GSM SIM cards, suitable for global users. arm/disarm each guarding zone independently, with 2 wired guarding zones for connecting wired sensors, Inform user if the power off via call/SMS, arm/disarm and program the system by control keyboard on the mainframe & phone .it is better choice for the user which doesn’t need too much accessories. User can use Magnetic door/window sensors, Smoke Detectors, gas detector, Infrared Sensors, remote control etc. in additional.



Packaging & Shipping

 Packing :Netural box packing

 Shipping : DHL/EMS/TNT/FEDEX



Our Services







 Certificate :







To know more,please kindly contact Emily  directly ^_^

we're alarm system manufacture, we can receive any kinds of OEM and ODM order

also about the Language, we have 6 English/Chinese/France/Russian/spian/ Portuguese etc .



welcom to your inquiry ^^
